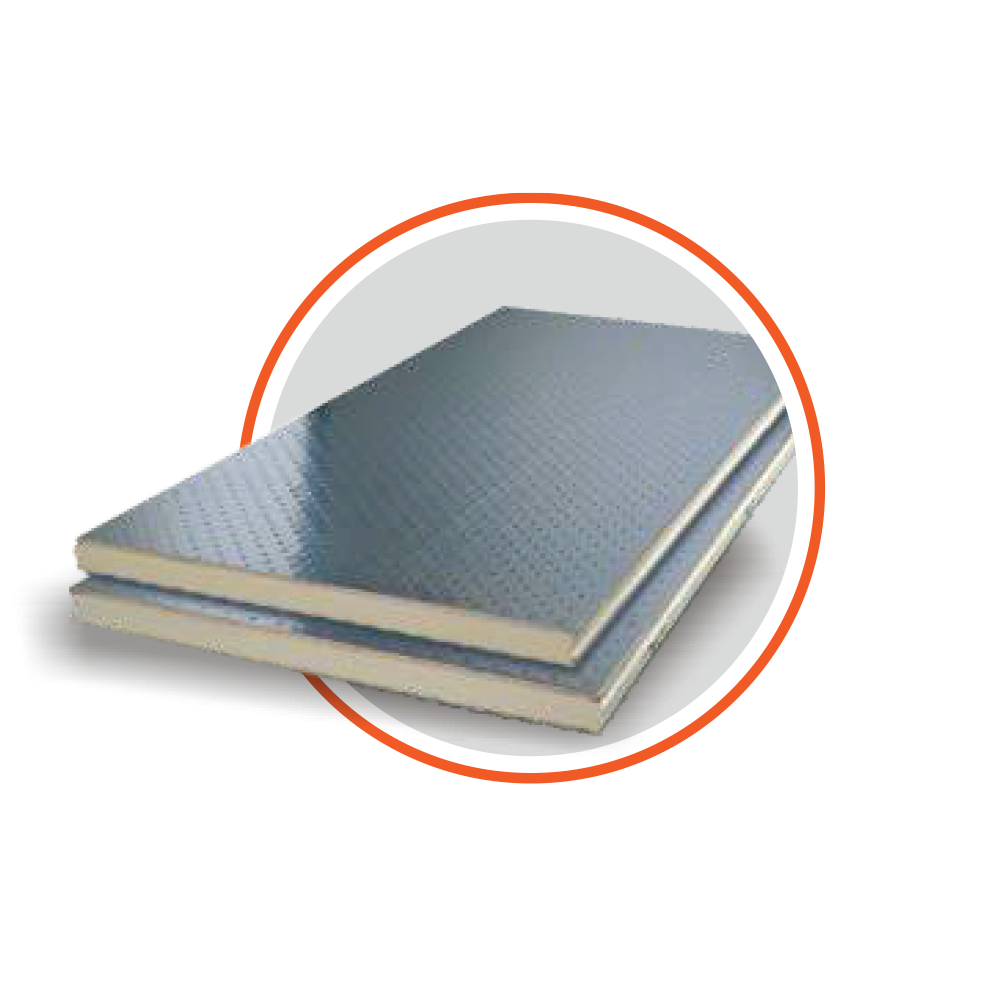

CRNI FLOOR PANEL

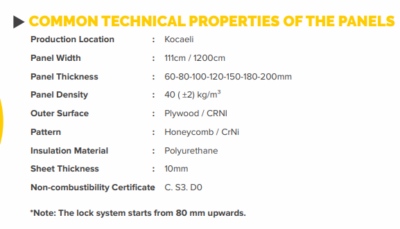

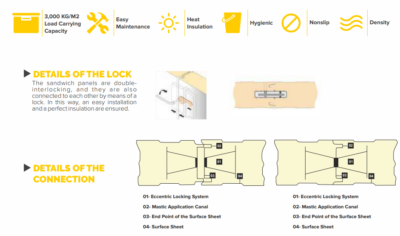

The upper surface of the floor panels is composed of plywood with a thickness of 10 mm, and their lower surface is composed of galvanized sheet with a thickness of 0.5 mm. The option of nonslip CrNi sheet applied with a special adhesive on plywood is also available. The width standard for the plywood floor panel is 111 cm, and the CrNi floor panel is produced with a width of 120 cm and with the locking system.

Maximum Rate of Insulation

All of our panels are produced with the guaranty of an insulation rate of 42 density and the maximum energy efficiency. The energy consumption is rather high in the cold rooms that cannot reach the 42 density since the heat loss is high in such cold rooms.

Categories: COLD ROOM PANEL & DOOR, COLD ROOM PANELS
